JCB 3.6kW / 4.5kVA Petrol Site Generator 115V / 230V 7.5hp 224cc JCB Engine, Recoil Pull Start

JCB

JCB 3.6kW / 4.5kVA Petrol Site Generator 115V / 230V 7.5hp 224cc JCB Engine, Recoil Pull Start

£469.99 inc VAT

£391.66 exc VAT
Sale Sold out

Shipping & Returns

Shipping: We offer the same day dispatch if ordered before 2pm. Usual delivery times are 1 - 3 days.

Returns: Please contact us via telephone or email, we will then arrange a collection via courier.

Meet the JCB-G3600P: A High-Performance 4.5kVA Petrol Generator for Professionals! Powered by a 7.5hp 224cc JCB Petrol Engine, it delivers 3.6kW / 4.5kVA* peak output. Built to endure, it's the go-to choice for dependable power on construction sites, mobile workshops, farms, and more!

Key Features:

  • Powered by a 224cc 7.5hp JCB petrol engine.
  • Max output of 3.6kW / 4.5kVA*, continuous output of 3.3kW / 4kVA
  • Automatic Voltage Regulator (AVR), which ensures a smooth and stable power output.
  • Built-in overload protection prevents damage to the alternator during operation.
  • Mounted on puncture-proof tires and encased in a robust 32mm tubular steel full frame design.

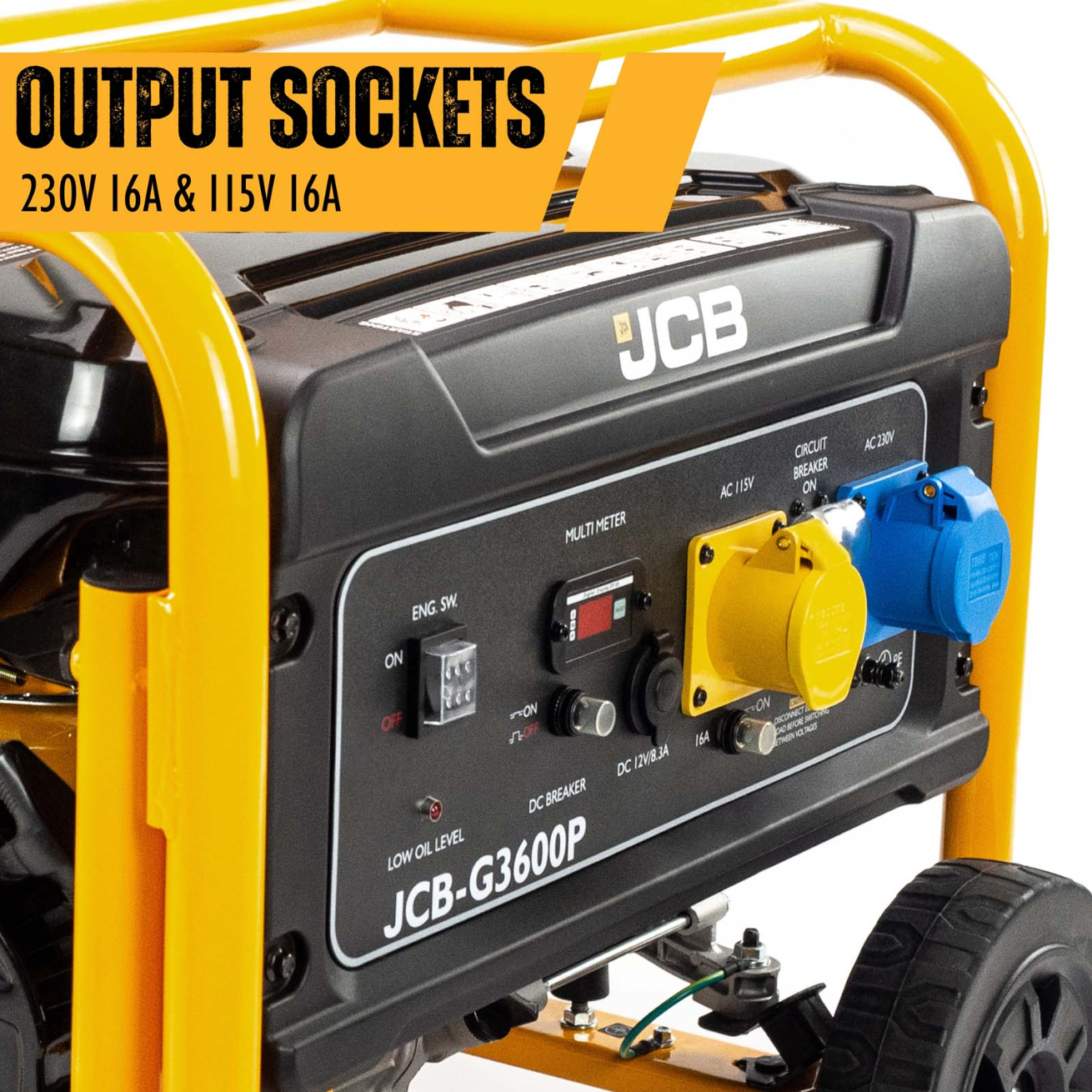

  • Equipped with a 230v / 16A (Blue) socket and a 115v / 16A (Yellow) socket, as well as a 12v DC 8.3A auxiliary power outlet.
  • Heavy-duty recoil pull start
  • Powered by a 4-stroke petrol engine, the generator requires no fuel-oil mixing.
  • Run time of over 13 hours at 50% load with its 15-litre fuel tank.
  • Net Weight 50kg
  • Backed by a comprehensive 3-year warranty (1 year Commercial)
  • UK delivery 3-4 working days (subject to stock availability)
  • Collection from Depots 2 working days (subject to suppliers stock)

3 Year Long-term Warranty:

For your peace of mind, the JCB-G3600P comes with a comprehensive 3-year warranty* (terms apply). With full parts and service backup, JCB Tools ensures your generators remain in excellent condition for years to come.

Model JCB-G3600P
Start Method Recoil
Maximum Output kVA 4.5
Maximum Output (kW) 3.6
Continuous Output (kW) 3.2
Run Time @ 50% load (hours) 13
Fuel Consumption @ 100% load (L/Hr) 2
Fuel Consumption @ 50% load (L/Hr) 1.15
Alternator Type AVR
Phase Single Phase
Voltage 115V / 230V
Connection Method(s) 230V / 16A, 115V / 16A
Rated Speed (RPM) 3000
Frequency (Hz) 50
Max/Continuous Current (Amps) 15.6 / 13.9
Engine Model JCB-EG225P
Engine Type Petrol single cylinder
Engine Size (cc) 224
Engine Power (hp) 7.5
Fuel Petrol
Fuel Capacity (L) 15
Engine Oil Type 10w-30 / SAE 15w40
Engine Oil Capacity (ml) 600
Low Oil Level Shutdown Yes
Features Overload Protection
Casing 32mm Thick Open Frame
Frame Diameter (mm) 33
Noise Level db (A) @ 7m 70
Noise Level db (A) 97
Wheel Kit? 54
Gross Weight (kg) 51
Net Weight (kg) 50
Fully Assembled Dimensions (H x W x L) (mm) 540 x 580 x 610
Package Dimensions (H x W x L) (mm) 515 x 520 x 685
Fuel/Power Source Petrol
Product Type Petrol Generator
Home Use Warranty (years) 3
Model EAN 5059608313055
Assembly Required? Yes - some assembly may be required
