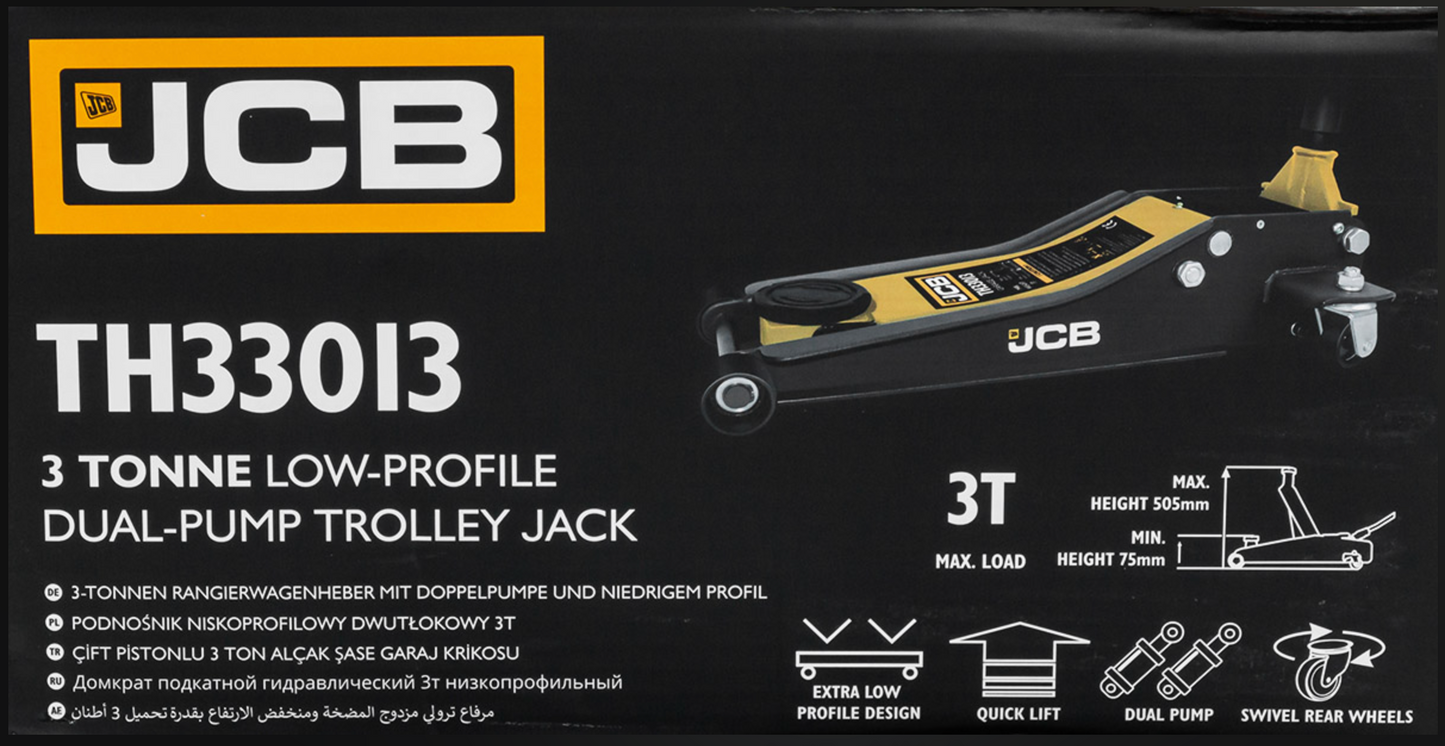

JCB 3 Tonne Low-Profile Double-Pump Trolley Jack | JCB-TH33013

JCB

JCB 3 Tonne Low-Profile Double-Pump Trolley Jack | JCB-TH33013

£167.99 inc VAT

£139.99 exc VAT
Sale Sold out

Shipping & Returns

Shipping: We offer the same day dispatch if ordered before 2pm. Usual delivery times are 1 - 3 days.

Returns: Please contact us via telephone or email, we will then arrange a collection via courier.

The JCB-TH33013 is a robust, low-profile and double-pump hydraulic trolley jack designed to offer a maximum lifting capacity of up to 3 tonnes in weight.

Constructed with a high quality and heavy-duty steel frame, the JCB-TH33013 is capable of lifting SUVs, cars, light commercial vehicles and any other vehicle which requires high ground clearance up to 505mm in height.

The JCB-TH33013’s chassis utilises an extra low-profile design, which allows the trolley jack to reach lower clearances, particularly useful for sports cars or vehicles with reduced ground clearance.

Thanks to its integrated double-piston mechanism, the JCB-TH33013 is a quick-lift trolley jack, which will save you precious time and effort in comparison to a single-piston counterpart.

The JCB-TH33013 is also equipped with durable swivel rear wheels and a saddle to provide smooth manoeuvring and positioning of the jack, while its integrated protection rubber pad will protect vehicles from getting scratched and damaged during lifting.

With safety in mind, the JCB-TH33013 features a built-in safety valve to protect against overloading and exceeding the jack’s capacity, as well as a hydraulic oil by-pass system, which safeguards the ram from over-extension.

Key Features

  • 3 Tonne Maximum Load Capacity
  • Maximum Height 505mm
  • Minimum Height 75mm
  • Double-piston, quick-lift feature saves you time and effort when pumping up the trolley jack
  • Extra low-profile design allows the jack to reach lower clearances, beneficial for sports cars or vehicles with reduced ground clearance
  • Protection Rubber Pad: Includes a pad to protect the vehicle from scratches or damage during lifting.
  • Heavy-Duty steel construction provides stability and endurance
  • Swivel rear wheels provide smooth maneuvering and positioning
  • Swivel saddle provide smooth manoeuvring and positioning
  • Built-in safety valve protects against jack overloading
  • Hydraulic oil by-pass system protects ram from being over-extended
  • Net Weight 35.2kg
  • Backed by a comprehensive 3-year warranty* (1 year Commercial)*
SPECIFICATIONS

Model JCB-TH33013
Height Min (mm) 75
Height Max (mm) 505
Lifting Capacity (T) 3
Net Weight (kg) 35.2
Gross Weight (kg) 37
Dimensions H x W x L (mm) 156 x 353 x 738
Packaging Dimensions H x W x L (mm) 205 x 370 x 805
Model EAN 5056485718140
